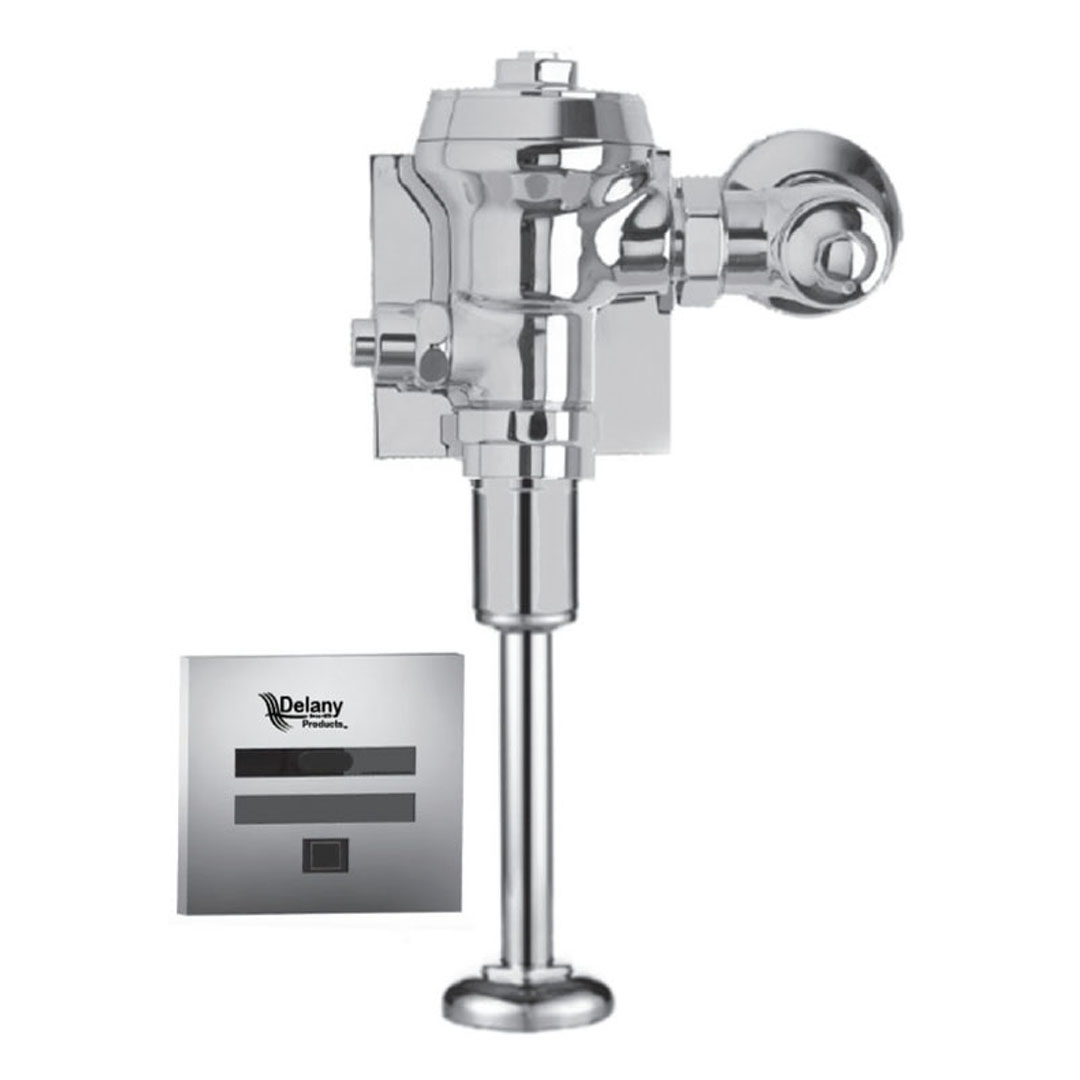

TruSense Plus UP1851-0.5-SC-RHR-T42-TMO

EXPOSED TruSENSE Plus VALVE for HIGH EFFICIENCY URINALS, SENSOR OPERATED, 9V HARDWIRED SYSTEM w/ ELECTRONIC COURTESY BUTTON, MASHAERATOR DIAPHRAGM, 0.75″ x 9″ FLUSH CONNECTION w/ TOP SPUD, SLIPFIT CONNECTION, SWEAT ADAPTER KIT & TRUE MECHANICAL OVERRIDE BUTTON (0.5 GPF)**** For Righthand Rough-In ONLY ****

Additional information

Activation

Sensor: Hardwired
Installation

Exposed
Fixture Type

Urinal
Style of Operation

Diaphragm
Flush Volume

0.5
Flush Connection

(3/4"): 11-1/2"
Certifications

ADA Compliant

Sleek wall plate designs add style and beauty to any commercial restroom.

Low 9V voltage system means minimal need for an electrician saving time, money, and HEADACHES.

With either 110/50 220/60 cycle option, it can be used anywhere in the world.

Latching solenoid for energy/power savings.

First ever electronic override button with a non-hold open feature.

True Mechanical Override button optional

  • Model Number
  • Short Name
  • GPF

Replacement Parts

TruSense Plus Valves
Valve Variations

Connect With Your Local Representative

P.O. Box 411, Charlottesville, VA 22902
info@delanyproducts.com
434-296-0166

Product Resources
Downloads
Customer Service
Facebook Twitter Youtube

Delany Products © 2020. All rights reserved.

Close

1

Recessed Hex Nut:

The resessed hex nut provides beautiful clean lines, while at the same time making the valve nearly scratch proof on installation and/or maintenance.

2

Upper Chamber Regulator Screw:

Delany's signature Regulating Screw now with upper chamber regulation ability allows for maximum field adjustability and True-in-the-Field water conservation.

4

Upper Chamber:

The market's smallest upper chamber allows for the most consistent performance across the broadest range of water pressures.

5

SlipFit Joint Connection:

The SlipFit joint connection allows the Saber to fit any existing Slip Joint Stop in the field.

7

Replaceable Main Valve Seat:

The market's only replacable main valve seat allows for the most cost effective solution in the case of wire drawing or scoring, while also providing the most effective way for a contractor to totally flush the water lines of debris at a job's completion.

8

Vacuum Breaker:

All Delany vacuum breakers are made from a chloamine resistant material.

3

Diaphragm with Mashaerator:

Delany's Mashaerator is the market's only self-cleaning bypass. A stainless steel wire loop helps to deflect debris while also preventing hard water build-up in the bypass. Why wait for a filter to clog, when you can keep the bypass open and clean with the Mashaerator. All Delany diaphragms are also made from chloramine resistant material.

6

Rubberflex Handle Assembly:

Delany's Rubberflex Handle Assembly provides a leak free seal that lasts and is easy for owners to repair at a fraction of the cost of competitors' handles. It is also both ADA compliant as well as chloramine resistant.

Hover over a number around the flush valve to read information on that item.
