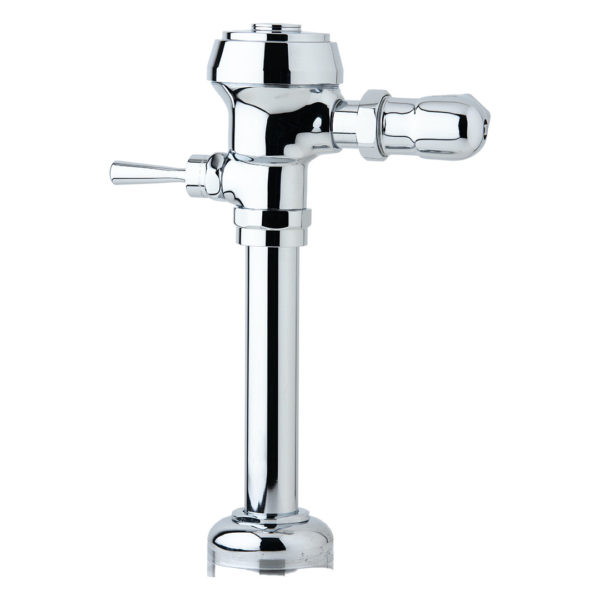

TruSaber S402-1.1-SC-T42-TS

EXPOSED TruSABER VALVE for HIGH EFFICIENCY TOILET w/ TruStop 1″ ANGLE STOP, MASHAERATOR DIAPHRAGM, SLIPFIT CONNECTION, 1.5″ x 9″ FLUSH CONNECTION, TOP SPUD & SWEAT ADAPTER KIT (1.1 GPF)

Additional information

Activation

Manual

Installation

Exposed

Fixture Type

Water Closet

Style of Operation

Diaphragm

Flush Volume

1.1

Flush Connection

(1-1/2"): 11-1/2”

Certifications

BAA Compliant, ADA Compliant, ASSE 1037, WaterSense

The smallest upper chamber of any valve on the market results in a valve that shuts off quickly, and provides most consistent performance across the widest range of water pressures, operating as low as 20 psi. A proven solution to many water hammer issues.

The Upper Chamber Regulating Screw allows for True-in-the-Field Water Conservation by allowing just a little more or a little less water for circumstances where the water pressure, flow rates or fixtures are less than optimal.

Delany’s Mashaerator diaphragm comes standard on every Saber Valve, preventing hard water build up and keeping the bypass free of debris with every flush.

  • Model Number
  • Short Name
  • GPF

Replacement Parts

TruSaber Valves
Valve Variations

Connect With Your Local Representative

1

Recessed Hex Nut:

The resessed hex nut provides beautiful clean lines, while at the same time making the valve nearly scratch proof on installation and/or maintenance.

2

Upper Chamber Regulator Screw:

Delany's signature Regulating Screw now with upper chamber regulation ability allows for maximum field adjustability and True-in-the-Field water conservation.

4

Upper Chamber:

The market's smallest upper chamber allows for the most consistent performance across the broadest range of water pressures.

5

SlipFit Joint Connection:

The SlipFit joint connection allows the Saber to fit any existing Slip Joint Stop in the field.

7

Replaceable Main Valve Seat:

The market's only replacable main valve seat allows for the most cost effective solution in the case of wire drawing or scoring, while also providing the most effective way for a contractor to totally flush the water lines of debris at a job's completion.

8

Vacuum Breaker:

All Delany vacuum breakers are made from a chloamine resistant material.

3

Diaphragm with Mashaerator:

Delany's Mashaerator is the market's only self-cleaning bypass. A stainless steel wire loop helps to deflect debris while also preventing hard water build-up in the bypass. Why wait for a filter to clog, when you can keep the bypass open and clean with the Mashaerator. All Delany diaphragms are also made from chloramine resistant material.

6

Rubberflex Handle Assembly:

Delany's Rubberflex Handle Assembly provides a leak free seal that lasts and is easy for owners to repair at a fraction of the cost of competitors' handles. It is also both ADA compliant as well as chloramine resistant.

Hover over a number around the flush valve to read information on that item.
